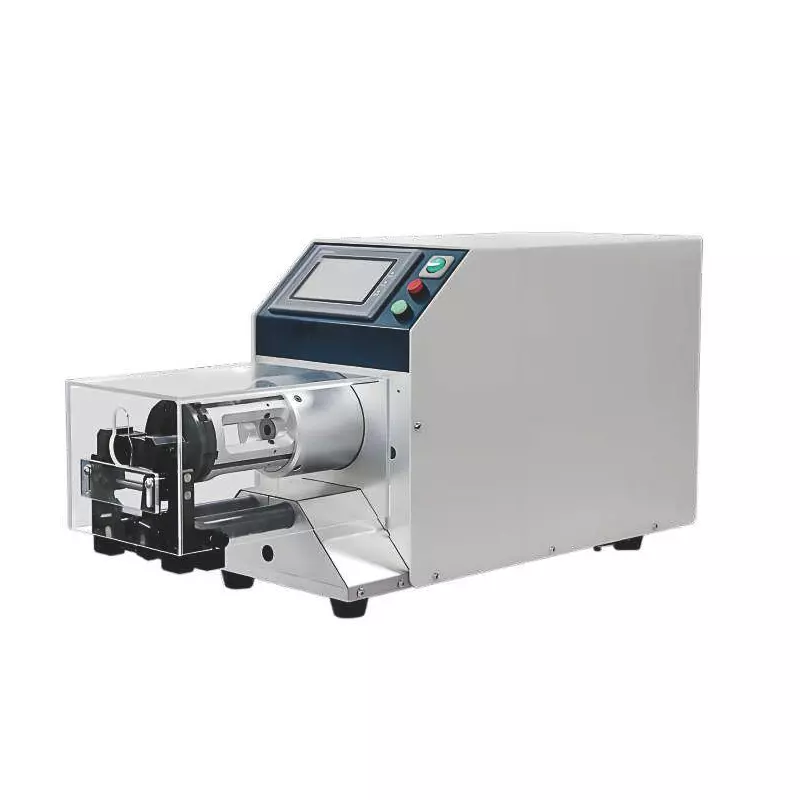

Semi-automatic Coaxial Cable Stripper
MOQ: 100 Pieces
Delivery time: 7 Day
Industry Type: Intelligent Wire Processing Equipment
Product Positioning: Applied in telecommunications, new energy vehicles, aerospace, rail transit, and other sectors
Product Details
Product craftsmanship
Before
After
LK-8608/Technical parameters
| Name | Equipment Configuration | Parameter Range |
| Equipment Display and Digital Input | Touchscreen | 7 inches |
| Equipment Operation Mode | Manual Mode/Automatic Mode | / |
| Power Requirements | / | AC 220V/110V 50/60Hz |
| Applicable Wire Types | Coaxial Cable, Flexible Cable, New Energy Cable | / |
| Maximum Stripping Length | 0-90mm | |
| Air Supply Requirements | 0.6PA | |
| Stripping Length Setting Unit | 0.01mm | |
| Cutting Wire Diameter Range | 1.5-18mm | |
| Cutting Depth Setting Unit | 0.01mm | |
| Production Efficiency | 400-800 pieces per hour (depending on wire material) | |
| Equipment Cycle Time | 4.8-5.5 seconds per single head | |
| Drive Method | Motor/ball screw drive | |
| Storage Capacity | 99 processing parameter presets | |
| Weight | 42 kg | |
| Stripping Method | 4 rotating blades | |
| Maximum Number of Stripping Layers | 9 layers | |
| Site Requirements | 720*230*350mm/-5 to 45 degrees dry vibration-free work surface | |
| Blade Material | Imported tungsten steel | |
| Work Involved in Product Changeover | Requires 3 minutes |
