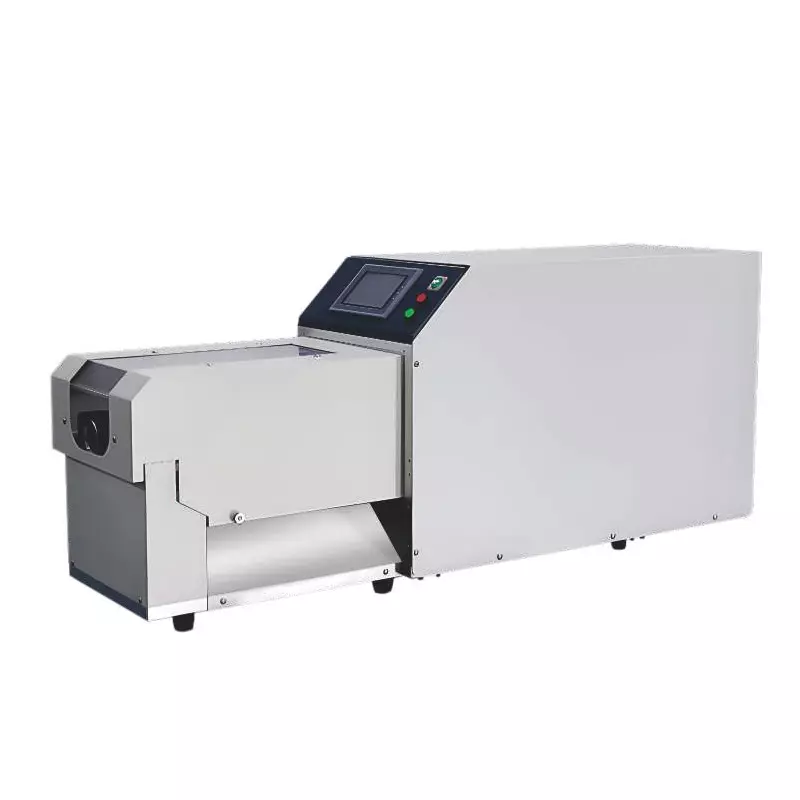

LK-3520
MOQ: 100 Pieces
Delivery time: 7 Day
Industry Type: Intelligent Wire Processing Equipment
Product Positioning: Applied in telecommunications, new energy vehicles, aerospace, rail transit, and other sectors
Product Details
Craftsmanship
Before Processing
After Processing
LK-3520/Technical Parameters
| Name | Equipment Configuration | Parameter Range |
| Device Display and Digital Input | Touchscreen | Chinese-English LCD 95mm*50mm |
| Device Operation Mode | Manual Mode/Auto Mode | / |
| Power Requirements | / | AC220V/110V 50/60Hz |
| Power Rating | / | 800W |
| Applicable Wire Types | New Energy Cables, Coaxial Cables, Power Cables, etc. | / |
| Maximum Stripping Length | 0-200mm | |
| Air Supply Requirements | 0.6Pa | |
| Stripping Length Setting Unit | 0.01mm | |
| Cutting Wire Diameter Range | 6-33mm | |
| Cutting Depth Setting Unit | 0.01mm | |
| Drive Method | Motor/Ball Screw Drive | |
| Storage Capacity | 99 Processing Parameter Data Sets | |
| Weight | 145kg | |
| Stripping Method | 4 Rotating Blades | |
| Maximum Number of Stripping Layers | 9 Layers | |
| Site Requirements | 1100*285*490mm/-5 to 45°C Dry Vibration-Free Work Surface | |
| Blade Material | Imported Mold Steel | |
| Work Performed for Product Replacement | Requires 3 Minutes |
