SS-RSG-600
MOQ: 100 Pieces
Delivery time: 7 Day

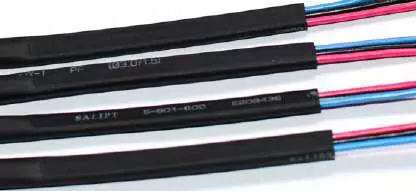

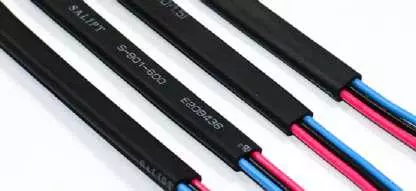

* It can cut the heat shrinkable casing, and the operator will insert the product end of the heat shrinkablecasing into the holeFrom the inside to the limit position, step on the foot switch and heat shrink the sleeve for heat shrink operation, which can be flattened according to the customer's requirementsFlat effectFlat lengthis 100-200mm.
* The length, outer diameter and reserved position outside the casing can be replaced with accessories,The thermal shrinkage temperature and time can be adjusted by parameters.
* The wire harness needs to be dried, and the flat effect products are basically applicable.
Product Details
Applicable wire range
Technical parameter
| Model | SS-RSG-600 (100-200mm) |
| Power supply | AC 220V 50/60Hz |
| Air pressure | 0.5~0.6MPa |
| Casinglength | 100MM-200MM |
| Casing diamcter | Ф3.0-Ф6 |
| accuracy | ±0.5mm |
| Efficieney | 300-500 (depending on pipe length and operator skill) |
| Yicld rate | 98% (with proper operator training) |
| power | 2KW |
| Product size | 0.8m*0.8m*1.3m (L*W*H) |
