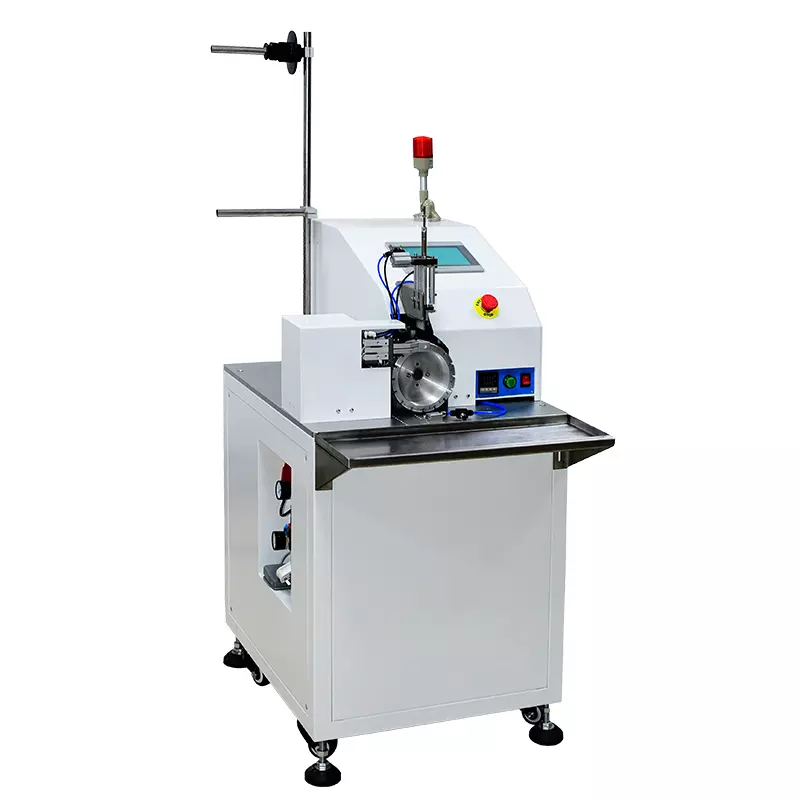

SS-RSG-500

MOQ: 100 Pieces

Delivery time: 7 Day

* It can cut the heat shrinkable casing, and the operator will insert the product end ofthe heat shrinkablecasing into the holeFrom the inside to the limit position, step on the foot switch and heat shrink the sleeve for heat shrink operation, which can be flattened according to the customer's requirementsFlat effect.Flatlengthis 10-100mm.

* The length, outer diameter and reserved position outside the casing can be replaced with accessories;The thermal shrinkage temperature and time can be adjusted by parameters.

* The wire harness needs to be dried, and the flat effect products are basically applicable.

Product Details

Applicable wire range

Technical parameter

Model	SS-RSG-500 (10-100mm)
Power supply	AC 220V 50/60Hz
Air pressure	0.5-0.6MPa
Casinglength	10MM-100MM
Casing diamcter	Ф 1.0-Ф6
accuracy	±0.5mm
Efficieney	500-800 (depending on pipe length and operator skill)
Yicld rate	98% (with proper operator skill)
power	1KW
Product size	0.8m × 0.8m × 1.3m (L × W × H)
