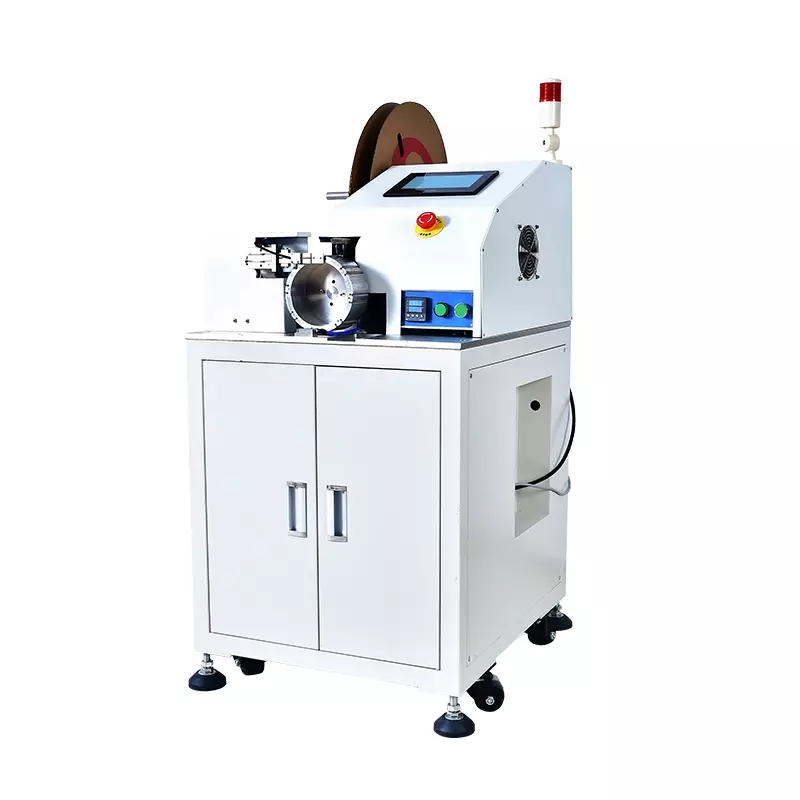

SS-RSG-200

MOQ: 100 Pieces

Delivery time: 7 Day

* Equipment function: It can achieve cutting of heat shrink tubing, and the operator will insert the product end of the heat shrink tubing into the holeAt the limit position, press the foot switch or hand sensing switch and proceed with the operation with the heat shrink sleeve. Go to the next jobBit automatic material retrieval;

* The length, outer diameter, and reserved space outside the casing can be replaced with accessories; Shrinkage temperature and time can be determined byAdjust parameters;

* Scope of application: Wire harness products that require sleeve penetration and drying are basically applicable;

Product Details

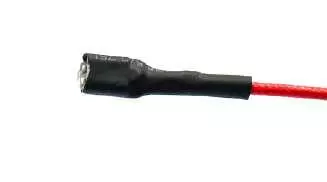

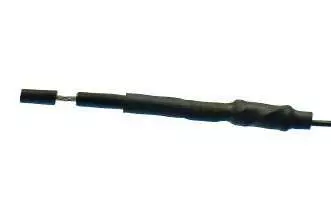

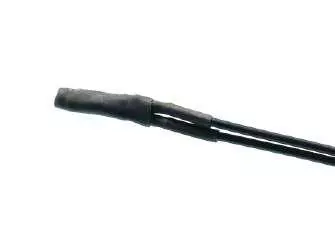

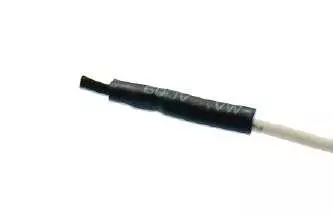

Applicable wire range

Technical parameter

Model	SS-RSG-200
Power supply	AC 220V 50/60Hz
Air pressure	0.5~0.6MPa
Casinglength	8MM-100MM
Casing diamcter	Ф1.0- Ф6
Accuracy	±0.5mm
Efficieney	800-1200 (depending on pipe length and operator skill)
Yicld rate	98% (with proper operator skill)
Power	2KW
Product size	0.9m × 0.65m × 1.3m (L × W × H)
