SS-LHMG-820
MOQ: 100 Pieces
Delivery time: 7 Day
* Equipment function: it can automatically complete wire cutting, peeling, single line single and double headcrimping terminals, single line single and double head coding, threading heat shrink tubing and crimpingterminals, and finally complete baking;
* Scope of application: Wiring harness products that require coding, heating, and compression end sleevesare basically applicable;
Product Details

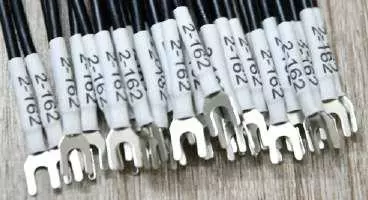

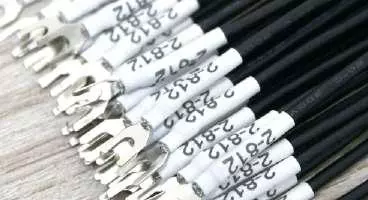

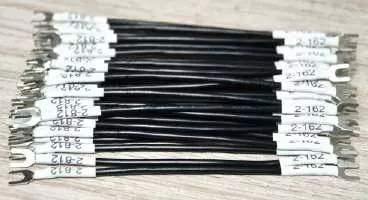

Applicable wire range
Technical parameter

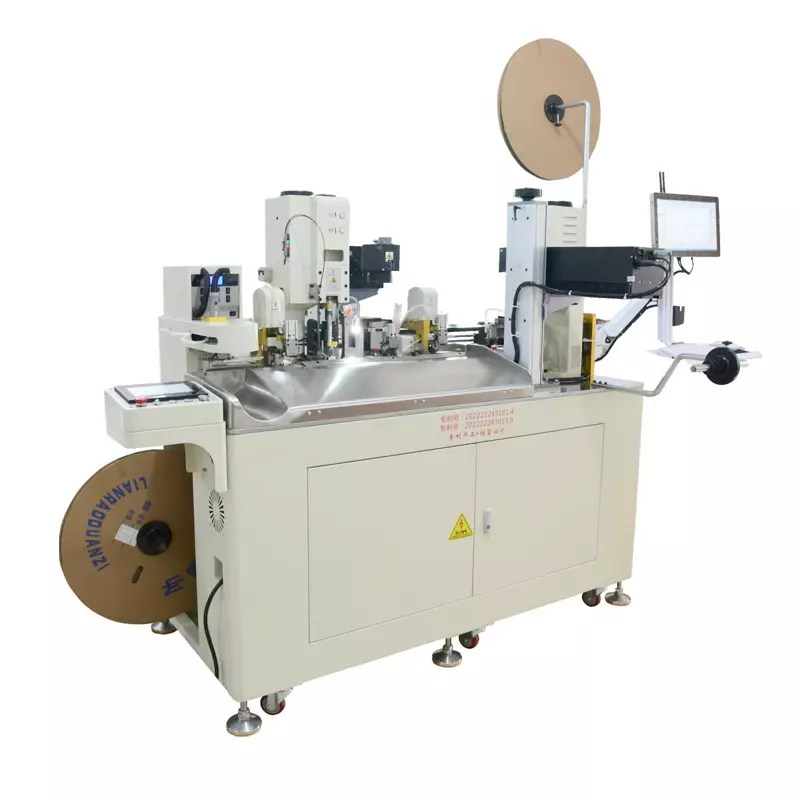

| Product Name | Fully Automatic Crimp-Insert-Heat-Shrink Terminal Machine |
| Applicable Wire Types | AWG 10#-24# |
| Compatible Dies | OTP Horizontal/Vertical Card Mold |
| Crimping Force | 2T (Other pressures available upon request) |
| Application Range | Wire cutting, partial stripping, full stripping, single/dual-head crimping terminals, single/dual-head heat shrink tubing insertion |
| Conduit Diameter and Length | D:3.0MM-6.0MM L :12MM-25MM |
| Processing Wire Length | 75MM-99999MM |
| Processing Efficiency | 1000PCS/H |
| Wire Cutting Tolerance | Approx. total length deviation <0.2% |
| Stripping Length | Front stripping 0-30mm, rear braking 0-8mm |
| Product Dimensions | 500mm*2500mm*2200mm (L*W*H including material tray dimensions) |
| Product Weight | Approx. 700kg |
| Operating Voltage | AC220V-50Hz |
| Operating Air Pressure | 0.4-0.6Mpa |
| Machine Power | 3.0Kw |
| Laser Power | Blue light 5W |
