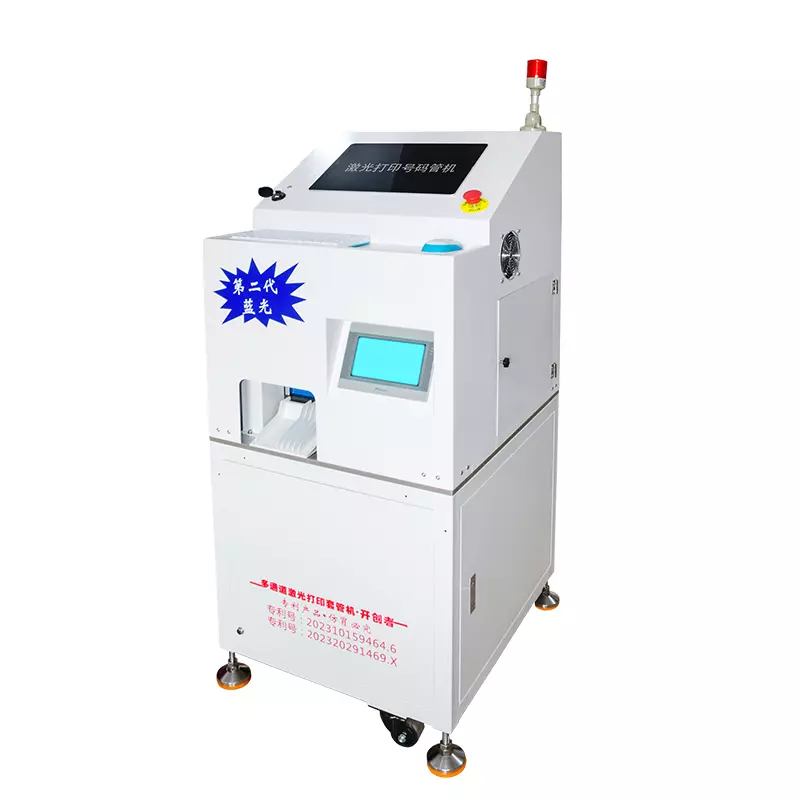

SS-HSTRBT-330/340
MOQ: 100 Pieces
Delivery time: 7 Day
* Equipment function: lt can a chieve laser double-sided and single-sided marking, complete cutting, halfcutting, and no cutting of the casing length.
Save consumables for 5 vears or so: Different casing specifications(Φ2-22) The round and flat pipesare universal and easy to replace, The cutting length and production quantity can be adiusted throughparameters; The contents of double-sided marking can be changed instantly through the screen.
* Scope ofapplication: Wire harness products that req uire marking of sleeves are basically applicable.
Product Details

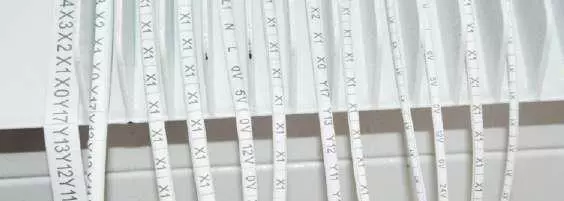

Applicable wire range
Technical parameter
| Model | SS-HMG-330 (Single-sided) | SS-HMG-340 (Double-sided) |
| Power supply | AC 220V 50/60Hz | |
| Casing length | Round tubes 5-55mm ；Flat tubes 5-140mm | |
| Casing diameter | Round tubes 1.5-7mm ；Flat tubes 7-Ф40mm | |
| Cutting accuracy | ±0.5 mm | |
| Efficiency | Single channel 1800-2300 (depending on tube length and marking content) | |
| Yield rate | 99% | |
| power | Single-sided 1.5KW；Double-sided 2KW | |
| Product size | 1.8*0.65*1.6m (L*W*H) including feed rack | |
| Product weight | 200Kg | |
