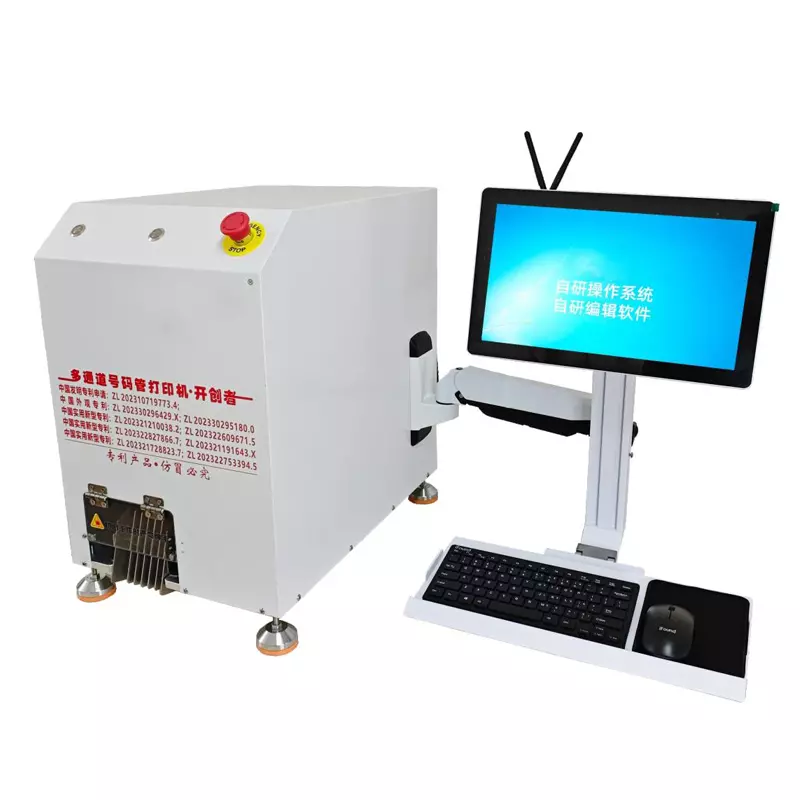

SS-HSTRBT-320
MOQ: 100 Pieces
Delivery time: 7 Day
* Equipment function: lt can achieve laser single-sided marking, complete cutting, half cutting, andno cutting of the casing length.
* Save consumables for about 5 years with zero consumables; different casing specifications (Ф 2-22) Universal use of round and fat tubes for easy replacement: the cutting length and production quantitycan be adjusted through parameters;

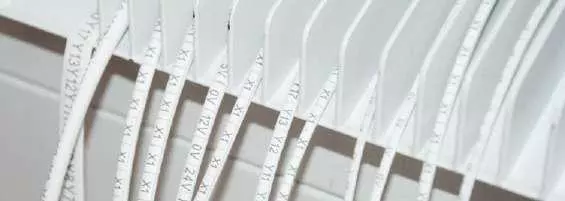

* Scope of application: Wire harness products that require marking of sleeves are basically applicable.
Product Details
Applicable wire range
Technical parameter
| Model | SS-HMG-320E | SS-HMG-320 |
| Power supply | AC 220V 50/60Hz | |
| Casinglength | 5 mm–50 mm | |
| Casing diameter | Ф2.0–Ф22 (round tube, flat tube) | |
| Cutting accuracy | ±0.5 mm | |
| Efficiency | 3200–4000 pcs/h (depending on tube length and marking content) | |
| Yield rate | 99% | |
| power | 2KW | |
| Product size | 0.9M*0.4M*0.62M (L*W*H) (Computer bracket width 0.45M, 360-degree adjustable) |
|
| Product weight | 200Kg | |
