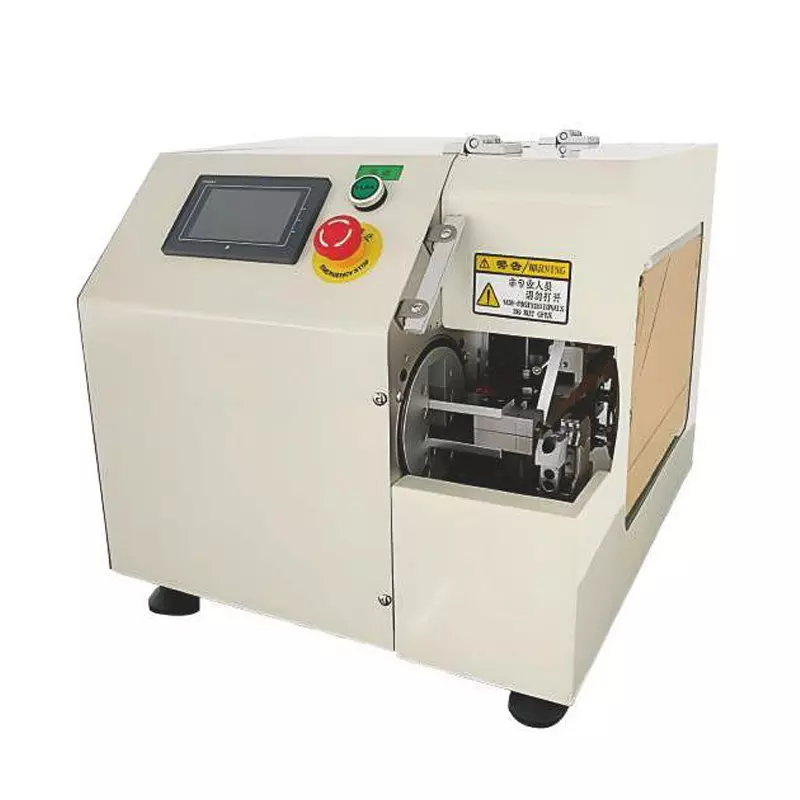

LK-BT-X15
MOQ: 100 Pieces
Delivery time: 7 Day
1. Automatic wire wrapping with steel foil, fully adjustable machine parameters
2. Suitable for copper foil widths of 3-20mm
Product Details
Before processing
After processing
LK-BT-X15/Technical Specifications
| Name | Parameter Range | Parameter Range |
| Equipment Display and Digital Input | Touchscreen | 4.3 |
| Equipment Operation Mode | Manual Mode/Auto Mode | / |
| Power Requirements | 4.3 | 220V |
| Application Product 0D Size | / | 0D Outer Diameter 10-20mm |
| Air Supply Requirements | / | 0.6PA |
| Maximum Copper Foil Length | / | 100mm |
| Copper Foil Specification Range | / | Copper Foil Width 3-20mm |
| Equipment Cycle Time | / | 2.8S-4.05 Single-Ended |
| Site Requirements | Replace copper foil paper | / |
| Work Performed for Product Replacement | Replace copper foil fixture | Requires 5 minutes |
