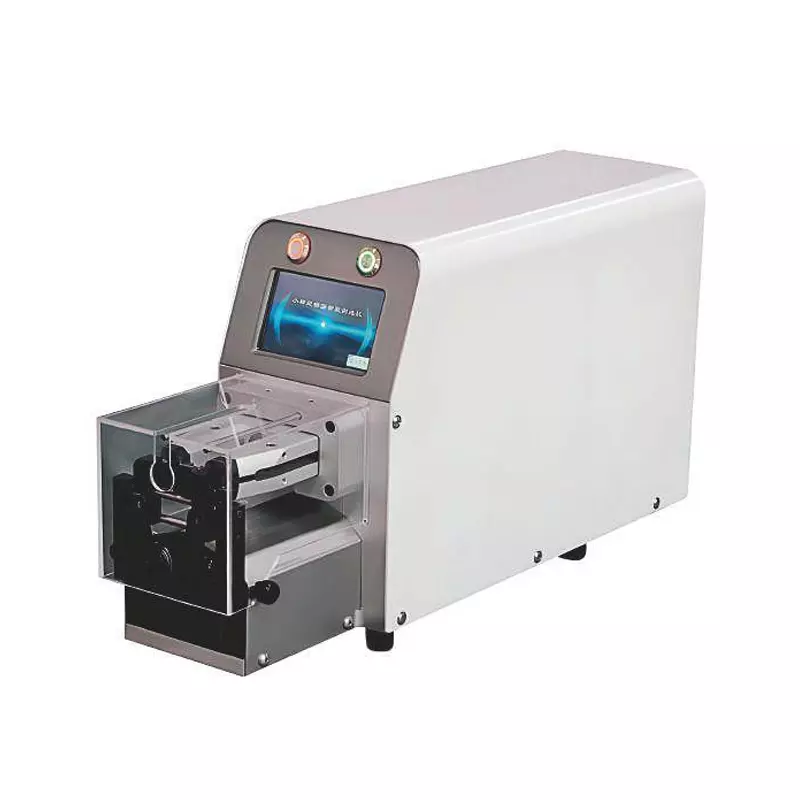

LKW10-B745
MOQ: 100 Pieces
Delivery time: 7 Day
Industry Type: Intelligent Wire Processing Equipment.
Product Positioning: Applied in telecommunications, new energy vehicles, aerospace, rail transit, and other fields.
Product Details
Products Description
Before processing
After processing
Truck 10-B745/Technical Parameters
| Name | Equipment Configuration | Parameter Range |
| Equipment Display and Digital Input | Touchscreen | 4.3 inches |
| Equipment Operation Mode | Manual Mode/Automatic Mode | / |
| Power Requirements | / | AC 220V/110V 50/60Hz |
| Power | / | 300W |
| Production Efficiency | / | 750-1150Pcs/h (depending on wire material) |
| Applicable Wire Types | Coaxial Cable, Flexible Cable, New Energy Cable | / |
| Maximum Stripping Length | 0-45mm | |
| Air Supply Requirements | 0.6PA | |
| Stripping Length Setting Unit | 0.01mm | |
| Cutting Wire Diameter Range | 0.5-7mm | |
| Cutting Depth Setting Unit | 0.01mm | |
| Storage Capacity | 99 processing parameter presets | |
| Weight | 13.8kg | |
| Number of blades | 2 sheets | |
| Maximum Number of Stripping Layers | 4 layers |
