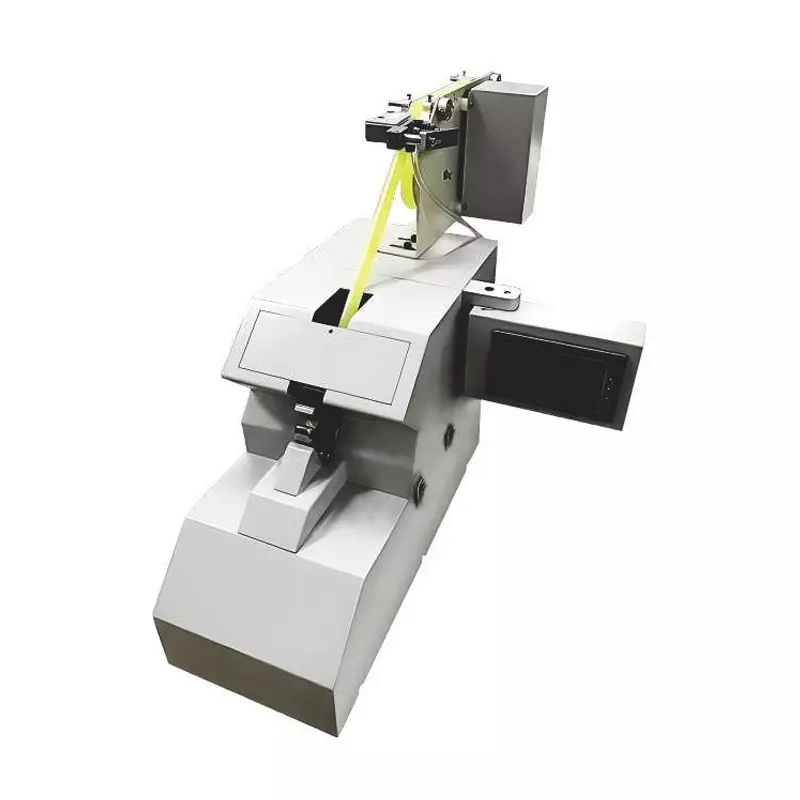

LKV-50
MOQ: 100 Pieces
Delivery time: 7 Day
Features: Adjustable tape length and winding cycles
Industry Type: Intelligent wire processing equipment
Product Positioning: Applied in telecommunications, new energy vehicles, aerospace, rail transit, and other sectors
Product Details
Before Processing
After Processing
Products Description
| Name | Parameter Range |
| Program Control | Panasonic PLC Program Control |
| Human-Machine Interface | Adjustable Display Parameters |
| Maximum Speed | 1500 rpm |
| Repeatability | 0.3mm |
| Operating Mode | Manual |
| Stepper Motor | Keli 2W5780EC-1000 1 set, Keli 2W5780EC-1000 1 set, Keli 2W5756-4-8 1 set |
| Motion Controller | Keli 3 sets |
| Tape Blade | 1 set, 2 million cycles lifespan |
| Rubber Strip | 1 set, 10,000 cycles lifespan |
| Pneumatic Components | YADEK Battery Valve 3 sets, YADEK Cylinder MPG16-5, YADEK Cylinder MD16-10 |
| Weight (kg) | Approx. 30KG |
| Dimensions (mm) | 50mm x 240mm x 550mm (L x W x H) |
| Air Supply | 0.4-0.7MPa |
| Power Supply/Power | AC220V 50Hz/60Hz |
