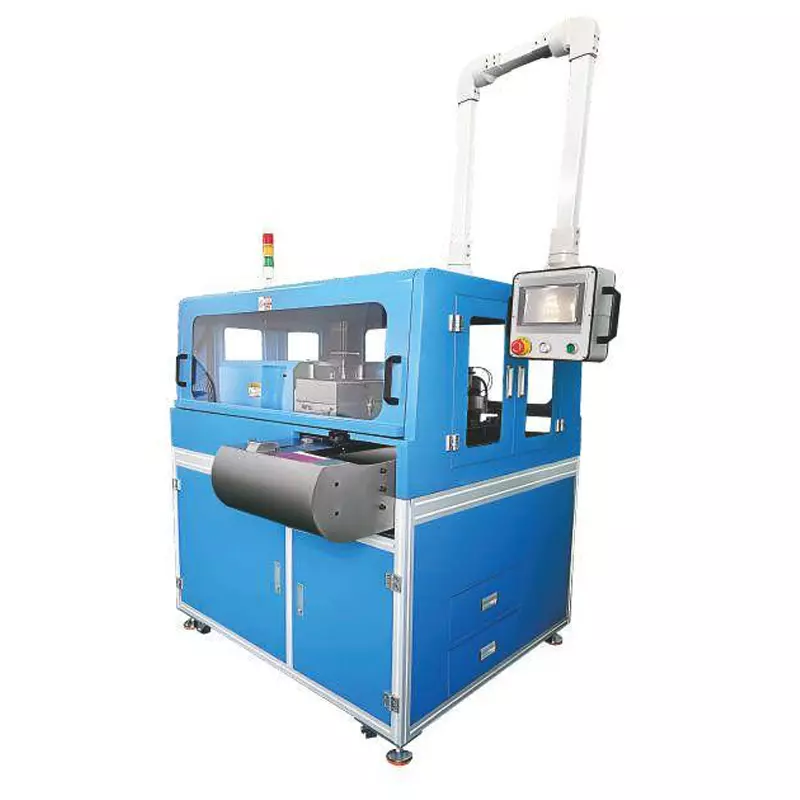

LK-SJC35

MOQ: 100 Pieces

Delivery time: 7 Day

1. Primarily designed for processing small-gauge wires,automatically brushes, cuts, shields, copper-foil wraps, and masking tape wraps.

2. Supports 20 preset configurations in database.

3. Capable of connecting to MES systems.

4. Manual wire feeding only required; shielding separation/shearing, back-flipping, copper foil wrapping, masking tape wrapping, robotic wire retrieval completed in one pass

5. Protective shielding prevents flying debris

6. Equipped with sprocket for continuous wire feeding during processing

7. Conveyor belt system supports reel-to-reel wire transfer

Product Details

Before and After Processing

Post-Processing Flip

Post-Processing Copper Foil Flip

LK-SJC35/Technical Specifications

Name	Parameter Range	Parameter Range
Equipment Operation Display	Touchscreen	7 inches
Shielding Processing Length	CNC Adjustment	10mm to 30mm
Wire Brush OD Size	CNC Adjustment	2.5mm to 8.5mm
Product Specification Database	CNC-set parameters can be saved and recalled	20 types
Equipment Cycle Time	Based on shielding mesh winding density and length	3.5S-12S
Equipment Tooling Range	Custom-made cutting tools for core wires	Compatible with core wires up to -0.5mm; can cut 5mm based on core wire specifications; accommodates core wire outer diameters of 4.5mm and 5mm
Equipment Program Library	/	20 database addresses
Equipment Single-Station Efficiency	/	Brush Cutter 3.5S/Copper Foil 3.0S
Equipment Overall Efficiency	/	3.5s---6s
Number of Programs	/	1000pcs single-head/hour/>20 sets
Startup Method	/	Foot switch
Power Requirements	/	220V
Air Supply Requirements	/	0.6PA
Space Requirements	/	L1340W1110H1625(mm)
Equipment Dimensions	/	Equipment features safety guard and swivel casters.
Input Voltage	/	200-240V/50Hz
Air Pressure	/	0.6Mpa
Work Involved in Product Changeover	1. Tool replacement, brush replacement; 2. Retrieve corresponding program from database	Processing time 6 minutes
