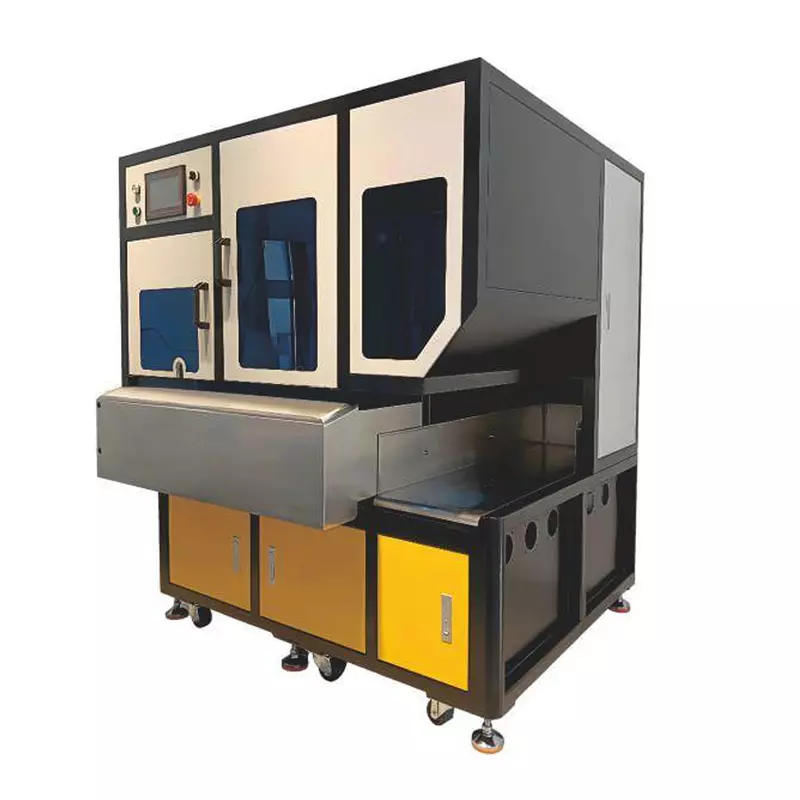

LK-S80
MOQ: 100 Pieces
Delivery time: 7 Day
1. Desktop model
2. Servo motor control for enhanced positioning accuracy
3. One-step solution for shielding processes: dispersing → shearing → post-melting/pre-flipping
4. Rotating dispersing process
5. Data storage: Quickly recall settings by entering stored codes
6. Tungsten steel blades withstand up to 100,000 shielding wire cuts
Product Details
Process Before
Process After
Process After
LK-S80/Technical Specifications
| Name | Parameter Range | Parameter Range |
| Equipment Display and Digital Input | Touchscreen | 7 inches |
| Shielding Retention Length Control | CNC Adjustment | 5mm to 20mm |
| Shielding Forward/Reverse Brush Length Control | CNC Adjustment | 10mm to 50mm |
| Product Compatibility Range, Combined Brush Fine-Tuning Control |
CNC Adjustment | Φ10mm to Φ18mm |
| Product Specification Database | CNC parameter settings can be saved and recalled | 20 types |
| Equipment Cycle | Based on shielding mesh wrap density and length | 12S to 18S |
| Equipment Tooling Applicability Range | Custom cutting tools based on core wire | Compatible with core wires up to 0.5mm smaller in diameter. for example, if the tool is designed for a 15mm core wire, it can accommodate core wires with outer diameters of 14.5mm and 15mm. |
| Equipment Program Library Configuration | 20 database addresses | / |
